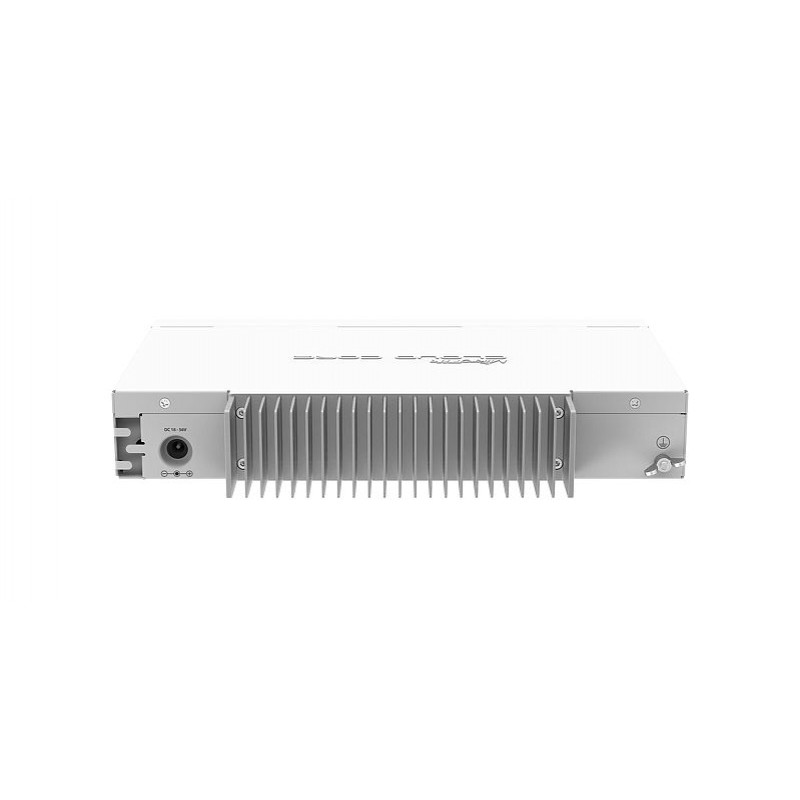

MikroTik รุ่น CCR1009-7G-1C-PC

คลิกที่รูปเพื่อดูภาพเต็ม

Ethernet test results

CCR1009-7G-1C-PC		Tile 9 core all port test with combo-port
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	652.8	7,927.6	1,931.2	7,910.2	14,874.0	7,615.5
Bridging	25 bridge filter rules	649.6	7,888.7	1,183.8	4,848.8	1,184.0	606.2
Routing	none (fast path)	652.8	7,927.6	1,931.2	7,910.2	14,581.0	7,465.5
Routing	25 simple queues	652.8	7,927.6	1,686.0	7,175.6	1,699.6	1,142.1
Routing	25 ip filter rules	615.8	7,478.3	660.9	2,812.8	668.3	449.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

CCR1009-7G-1C-PC		CCR1009 series 1 GHz IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	112.5	1260.0	112.6	461.2	115.4	59.1
256 tunnels	AES-128-CBC + SHA1	232.1	2599.5	268.2	1098.5	277.3	142.0
256 tunnels	AES-128-CBC + SHA256	232.1	2599.5	268.2	1098.5	277.3	142.0
256 tunnels	AES-256-CBC + SHA1	230.0	2576.0	265.4	1087.1	260.7	133.5
256 tunnels	AES-256-CBC + SHA256	230.0	2576.0	265.4	1087.1	260.7	133.5

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Specifications
CPU nominal frequency	1 GHz
Dimensions	272x190x47mm
License level	6
Operating System	RouterOS
Product code	CCR1009-7G-1C-PC
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-20°C to 60°C
Architecture	TILE
CPU	TLR4-00980
CPU core count	9
Powering
AC input range	100-240
DC jack input Voltage	18-57 V
Max power consumption	30 W
Max power consumption without attachments	25 W
Number of AC inputs	1
Number of DC inputs	2 (PoE-IN, DC jack)
PoE in	Passive PoE
PoE in input Voltage	18-57 V
Ethernet
10/100/1000 Ethernet ports	7
Ethernet Combo ports	1
Peripherals
Max USB current (A)	1
Number of USB ports	1
Serial port	RS232 + Header
USB Power Reset	Yes
USB slot type	microUSB type AB
Other
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Brand: MikroTik
MikroTik รุ่น CCR1009-7G-1C-PC ซีพียู 9 cores x 1.2 GHz แรม 1GB รองรับ SFP 10G พร้อมชุด Power supple แบบ Dual เคสแบบ passive cooling
Availability: In Stock

Qty

เฉพาะทางไปรษณีย์เท่านั้น

Tags: CCR1009-7G-1C-PC
